Blackvue | CM100LTE CLOUD MODULE(BVCM100LTE)
- The CM100LTE connects to your compatible BlackVue 750x/ 900x Series dashcam to provide easy 4G LTE connectivity.
- All you need is a valid Nano SIM card. ..............................................
- The CM100LTE connects via the USB port of your dashcam.
- Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in. ............................
- 1.5Mtr cable length.
- External 4G LTE Module.
- LTE Connectivity Module.
- Blackvue | CM100LTE CLOUD MODULE User Guide. r
(Supplied, inc VAT)
Specifications
- LTE Module:
- CM100LTE [GL] : Quectel EC25-E CM100LTE
- [NA] : Quectel EC25-A CM100LTE
- [JP] : Quectel EC25-J CM100LTE
- [AU] : Quectel EC25-AU
- LTE Supported Band:
- EC25-E : B1/B3/B5/B7/B8/B20
- EC25-A : B2/B4/B12
- EC25-J : B1/B3/B8/B18/B19/B26
- EC25-AU : B1/B2/B3/B4/B5/B7/B8/B28
- LTE Features:
- Support up to Non-CA CAT. 4 FDD
- TDD LTE-FDD : Max 150Mbps(DL)
- Max 50Mbps(UL) LTE-TDD
- Max 130Mbps(DL) / Max 30Mbps(UL)
- Transmitting Power:
- Class 3 : 23dBm +/-2dBm @ LTE-FDD
- Bands Class 3 : 24dBm +1/-3dBM
- @ WCDMA Bands
- Power Supply:
- USB Harness Cable : 3.0m Typical Supply
- Voltage : 5.0V / 1A Supply Input
- Voltage : 3.3V ~ 5.5V / Max. Current : 2A
- Temperature Range:
- Operation Temperature Range : -35°C ~ +75°C
- Storage Temperature Range : -40°C ~ +85°C
- SIM Type : Support Nano SIM Card / 3.0V
- Connector Type : Micro USB Type-B Connector with Harness Cable
- USB Interface : Compliant with USB 2.0 specification(Slave Only),Reach up to 480Mbps for data transfer rate
- Antenna Type : Fixed / Intenna (Main, Diversity)
- Certifications : PTCRB, FCC, ISED, RCM, TELEC, WEEE, RoHS
- Blackvue | CM100LTE CLOUD MODULE User Guide.

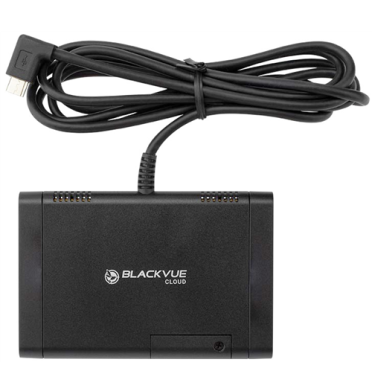

CM100LTE CLOUD MODULE
External 4G LTE Module
USB Plug-in Connectivity Module (CM100LTE) for DR900X and DR750X dashcams.
Empower your BlackVue dashcam with 4G LTE connectivity.
The CM100LTE connects to your compatible BlackVue X Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.
LTE Connectivity Module
With DR900X and DR750X, you can connect an LTE Connectivity Module (CM100LTE) which is powered by the dashcam and provides 4G LTE connectivity for your dashcam. This allows you to connect your dashcam to BlackVue Cloud and receive notifications to your phone when your parked car gets hit. It also lets you remotely see what your dashcam sees in real time. Being powered by the dashcam, you do not need to worry about the CM100LTE running out of power like you might with a self-powered router.
