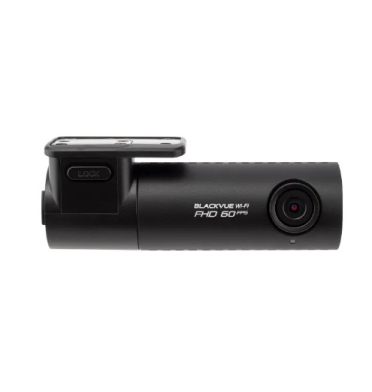

Blackvue | DR590X-2CH Front & Rear 32Gb Dash Cam
- 32gb Memory card included. Upgradeable upto 256gb.
- Blackvue | DR590X 32GB 2CH (Hardwire and Plug & play).
- External GPS Receiver(Optional).
- Front 1080p Full HD .
- 60 Frames Per Second (FPS).
- SONY STARVIS Sensor.
- Viewing Angle: Front Diagonal 139° Rear Diagonal 136.8° .
- Built-in wifi.
- Optional GPS receiver availble (BVGPSANTX)
- 3 Recording Modes (Normal, Event & Parking).
- User-Friendly Interface (Voice Guidance & LED).
- Discreet Design (All black casing and easily detachable bracket).
- BlackVue Viewer application (Mac and Windows).
- Built in Parking mode with adjustable voltage and timer.
- Built-in Impact & Motion Detection.
- Blackvue | DR590X 2CH - 32GB Recording Time PDF.
- Format Free Technology.
- Event File Overwrite Protection.
- 3-Axis Acceleration Sensor.
- Please note when purchasing a 2/3 channel combination dashcam for automobiles. Certain vehicles have complex tailgate applications from split tailgates to complex grommet arrangements, before a purchase is executed please either call us on 01274 733633 or email on info@vehicletrackingtech.co.uk beforehand so we can ascertain the information to hand.
- Please before purchasing a 2channel/multichannel dashcam combination for vans. Certain vans that are carpeted cannot have the rear dashcams installed. If any further assistance is required, please call on 01274 733633 or email on info@vehicletrackingtech.co.uk
NOTE : Regarding the Supplied & Fitted Options
(Supplied, inc VAT)
What's in the box
- Front Camera.
- Rear Camera.
- Quick start guide
- Cable clips (5EA)
- microSD card
- microSD card reader
- Spare mount sticky pad
- Cigarette Lighter Power Cable
- Pry Tool
- Vehicle Power Cable
Specifications
- Full HD Front & Rear.
- Memory Support : microSD card up to 256GB
- Wi-Fi : Built-in (802.11n (2.4~2.4835 GHz))
- GPS : External (optional)
- Recording Modes:
– Normal,
– Event (Impact Detection / Speed Limit),
– Parking Mode (Motion+Impact Detection)
- Parking Mode : YES (hardwiring cable included)
- Parking Mode Event Voice Notifications : YES
- Imaging Sensor : Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
- Viewing Angle :
- Front Diagonal 139°, Horizontal 116°, Vertical 61°
- Diagonal 136.8°, Horizontal 111.3°, Vertical 57.5°
- Resolution Frame Rate : Full HD @60fps * Frame rate may vary during Wi-Fi streaming
- Video Codec : H.264 (AVC)
- Image Quality and Bitrate Front/Rear:
- Highest (Extreme): 25 Mbps
- Highest: 12 Mbps
- High: 10 Mbps
- Normal: 8 Mbps
- Format Free : YES (Adaptive)
- Event File Overwrite Protection : YES
- SD Card Failure Alert : YES
- Video File Extension : MP4
- Microphone : Built-in
- Speaker : Built-in
- Impact Sensor : 3-Axis Acceleration Sensor
- Operation Temperature : -20℃ – 70℃ (-4°F – 158°F)
- Storage Temperature : -20℃ – 80℃ (-4°F – 176°F)
- High Temp Cut Off : Approx. 70℃ (158°F)
- Backup Battery : Built-in supercapacitor
- Input Power : DC 12V-24V (DC Plug (Ø3.5 x Ø1.35)) to Wires (Black: GND/Yellow: B+/Red: ACC)
- Power Consumption Hour:
- Normal Mode (WiFi On/GPS On): 240mA/hour
- Normal Mode (WiFi Off/GPS On): 200mA/hour
- Parking Mode (WiFi On/GPS Off): 220mA/hour
- Parking Mode (WiFi Off/GPS Off): 180mA/hour
- When connected to CM100GLTE-M (Optional)
- Normal Mode (WiFi On/GPS On): 290mA/hour
- Normal Mode (WiFi Off/GPS On): 260mA/hour
- Parking Mode (WiFi On/GPS Off): 250mA/hour
- Parking Mode (WiFi Off/GPS Off): 220mA/hour
Full HD Wi-Fi Dashcam
Full HD Sony STARVIS™ CMOS Sensor recording at 60 frames per second.
Built-in Wi-Fi: Easily adjust settings and transfer videos to your phone with the BlackVue App.
60 frames per second recording
It records super fluid videos at a high frame rate of 60 frames per second.
This means videos look more lifelike and the dashcam can better catch details in fast moving objects thanks to reduced motion blur.
Built-in Wi-Fi and Optional GPS
Built-in Wi-Fi:
The DR590X-2CH features built-in Wi-Fi to let you connect with the BlackVue App. A button lets you turn Wi-Fi on/off.
Additionally, you can configure the Wi-Fi activation behavior in the settings (Auto Turn On, Auto Turn Off).
USB port:
The USB port lets you connect a GPS receiver.
Native Parking Mode
Hardwiring cable included
DR900X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR900X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
External GPS Receiver (Optional)
The External GPS Receiver connects to the USB port to add speed and location data to your videos.
Speed: speed data–in Km/h or Mph–will be overlaid in the video (can be turned off in the settings).
Location: you can visualize the location of your vehicle in the BlackVue Viewer’s Map during video playback.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue DR900S-1CH can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
While installing our dashcams is relatively straightforward, every vehicle is unique, and challenges may arise, especially with rear camera installations.
We recommend professional installation to ensure proper setup, particularly for vehicles with complex configurations like split tailgates or DAB interference. Our expert team is equipped to assess and address such challenges, offering tailored solutions for your specific vehicle requirements.
A dashcam, mounted discreetly on your vehicle's dashboard or windshield, serves as your silent witness on the road, capturing video footage of your journeys.
Installing one not only enhances safety but also provides invaluable accident documentation and peace of mind while driving. Moreover, our range includes additional cameras for internal, rear, and side views, suitable for various vehicle types, from cars to vans.
