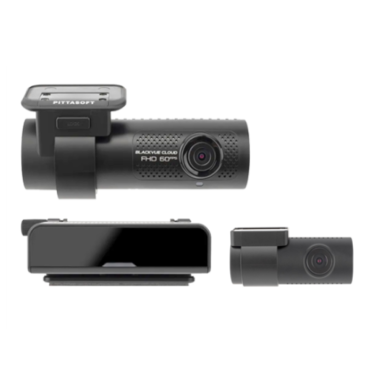

Blackvue | DR770X-2CH DMS Plug & Play
- 32Gb Memory card included(Can be upgraded upto 256GB).
- Blackvue | DR770X-2CH DMS(Plug & play).
- Front / Rear Video + Driver Monitoring System.
- Front Full HD 1080p @60fps , DMS Full HD 1080p @30fps .
- Viewing Angle : Front Diagonal 139°, Front Diagonal 115° .
- Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel).
- Feel Safer At The Wheel Cloud Dashcam and AI-Powered driver Monitoring System.
- Full HD STARVIS™ Sensors Front and Interior.
- AI-Powered Driver-Monitoring Camera.
- AI-specific Driving Reports.
- GPS, Wi-Fi and Optional LTE
- Seamless Pairing with the BlackVue App
- Native Parking Mode.
- High Frame Rate for Extra Fluidity.
- Set up (easily) and forget.
- Blackvue | DR770X-2CH DMS Recording Time PDF.
- Built-in Speaker, Impact Sensor and Motion Detection.
- Sleek Interface.
- BlackVue App (iOS, Android) and Viewer windows/Mac/Web).
- Blackvue Cloud.
- Your videos are safe.
- LTE Connectivity Module (Optional).
- Built-in Tamper-Proofing.
- Intelligent Parking Mode.
(Supplied, inc VAT)
What's in the box
- Front Camera
- Driver Monitoring Camera (DMC200)
- Quick start guide
- Cable clips (12EA)
- microSD card
- microSD card reader
- Spare mount sticky pads
- Coaxial Cable (6m)
- Hardwiring cable (3p)
- DMC Hardwiring Cable (2p)
- Cigarette lighter power adapter
- Pry tool
Specifications
- Resolution Frame Rate :
- Front: Full HD (1920 x 1080) @ 60 fps
- DMS: Full HD (1920 x 1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
- Wi-Fi : BBuilt-in (802.11 b.g.n)
- Cloud Compatible : YES
- GPS : Built-in (Dual Band : GPS, GLONASS)
- Viewing Angle :
- Front: Diagonal 139°, Horizontal 116°, Vertical 61°
- DMS: Diagonal 115°, Horizontal 95°, Vertical 49°
- Rear Camera Connection : Coaxial cable
- Memory Support : microSD card up to 256GB
- Recording Modes : Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
- Parking Mode : YES (hardwiring cable included)
- Parking Mode Event Voice Notifications : YES
- Imaging Sensor :
- Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Interior (DMS): Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Video Codec : H.264 (AVC)
- Image Quality and Bitrate Front/Rear :
- Highest (Extreme): 25+10 Mbps
- Highest: 12+10 Mbps
- High: 10+8 Mbps
- Normal: 8+6 Mbps
- Format Free : YES (Adaptive)
- Event File Overwrite Protection : YES (up to 50)
- SD Card Failure Alert : YES
- Scheduled Reboot : YES
- Video File Extension : MP4
- Microphone : Built-in
- Speaker : Built-in
- Impact Sensor : 3-Axis Acceleration Sensor
- LED Indicators :
- Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
- DMS: Detection LED (Green / Red / Blue)
- Rear Camera IR Illumination : 940nm (4 Infrared LEDs)
- Button
- Front (Touch sensor): Pressing the touch sensor triggers manual recording depending on the firmware settings.
- DMS (Touch sensor): Press once to turn on/off beep alerts.
- Operation Temperature : -20 °C − 70 °C (-4 °F − 158 °F)
- Storage Temperature : -20 °C − 80 °C (-4 °F − 176 °F)
- High Temp Cut Off : Approx. 75 °C (167 °F)
- Backup Battery : Built-in supercapacitor
- Input Power:
- Front: DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC)
- DMS: DC 12V –24V (DC Plug: (Ø3.5 x Ø1.35), MAX 1A/12V)
- Power Consumption Hour :
- Normal Mode (GPS On/2CH) : Avg. 570mA/12V
Parking Mode (GPS Off/2CH) : Avg. 520mA/12V
* Actual power consumption may vary depending on use conditions and environment
- Others : Adaptive Format-Free File Management System
- Bluetooth Built-in (V2.1+EDR/4.2)
- LTE External (optional)
Full HD STARVIS™ Sensors Front and Interior
The front camera captures the road at 60 frames per second (139-degree view angle) and the infrared AI-powered DMC200 (115-degree view angle) analyzes and alerts the driver in case of drowsiness or distraction while recording clear videos of the vehicle’s interior.
Both cameras feature Full HD Sony STARVIS™ image sensors for best image quality under any light.
The back-illuminated STARVIS image sensors produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.
AI-Powered Driver-Monitoring Camera
The infrared Driver-Monitoring Camera (DMC200) is designed to improve driver’s safety by helping prevent risky behaviors. Its algorithm can detect statuses such as:
- Drowsy driving (with initial and repeated drowsiness warning)
- Distracted driving (looking away)
- Hand distraction (hands detected near face for an extended period of time)
- Driver detected/undetected
- Mask on/off
AI-specific Driving Reports
View driving behavior trends at a glance
When connected to BlackVue Cloud, the DMC200 generates additional driving report data under the label “Inattentive driving“.
Those can be seen in the BlackVue App under Connect to Cloud > Select your camera > Report tab.
In the BlackVue Web Viewer (blackvuecloud.com), simply click the Report tab.
Daily and monthly data can be displayed
Wi-Fi, GPS and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.
(*) SIM card not included.
Seamless Pairing with the BlackVue App
Effortless setup. Secure. No password.
With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
Native Parking Mode
Hardwiring cable included
DR900X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR900X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
High Frame Rate for Extra Fluidity
The advantage of 60FPS video capture The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: located in the front camera, it detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
Sleek Interface
Touch sensor
Tap the touch sensor to trigger Manual Event videos.
Format button
Hold to format the microSD card.
Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.
BlackVue Cloud
Me and My Car. Connected.
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Tamper-Proof Case (Optional)
The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.
Triple protection
Intelligent Parking Mode
Protect your car when you are away.
BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR970X Series supports two Parking Mode options:
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 54 hours on a 32GB microSD card front and rear at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
