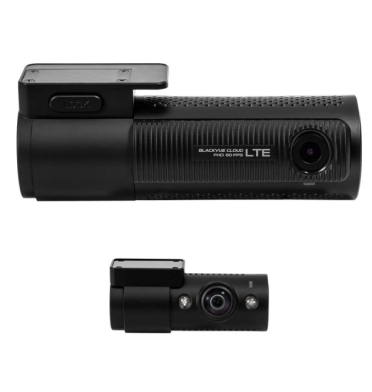

Blackvue | DR770X-2CH IR LTE Plug & Play
- 64GB Micro SD card Included (Choose capacity From 64GB to 256GB).
- Blackvue | DR770X 2-CH LTE IR (Plug & play)( Sim card is Not Included ).
- Built-in GPS.
- Front Full HD 1080p @60fps , Interior Full HD 1080p @30fps.
- Viewing Angle(Diagonal) : Front139°, Interior 180°
- Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Best Night and Day Video Clarity and Built-in Cloud connectivity
- Dual Full HD Cloud dashcam.
- Native Parking Mode.
- GPS, Wi-Fi and Optional LTE.
- Set up (easily) and forget.
- Seamless Pairing with the BlackVue App.
- Your videos are safe.
- Built-in Speaker, Impact Sensor and Motion Detection
- Sleek Interface.
- Blackvue | DR770X 2-CH Recording Time PDF.
- Built-in wifi.
- BlackVue App (iOS, Android) and Viewer windows/Mac/Web).
- Blackvue Cloud.
- High Frame Rate for Extra Fluidity.
- LTE Connectivity Module (Optional).
- Tamper-Proof Case (Optional).
- Intelligent Parking Mode.
(Supplied, inc VAT)
What's in the box
- Front Camera
- Interior IR Camera
- Quick start guide
- Cable clips (8EA)
- microSD card
- microSD card reader
- Spare mount sticky pads
- Coaxial Cable (1.5m)
- Hardwiring power cable
- Cigarette lighter power adapter
- Pry tool
- Sim Eject Tool
Specifications
- Viewing Angle :
- Front: Diagonal 139°, Horizontal 116°, Vertical 61°
- Interior: Diagonal 180°, Horizontal 150°, Vertical 93°
- Resolution Frame Rate :
- Front: Full HD (1920 x 1080) @ 60 fps
- Rear: Full HD (1920 x 1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
- Wi-Fi : Built-in (802.11 b.g.n)
- Cloud Compatible : YES
- GPS : Built-in (Dual Band : GPS, GLONASS)
- Rear Camera Connection : Coaxial cable
- Memory Support : microSD card up to 256GB
- Recording Modes :
- Parking Mode : YES (hardwiring cable included)
- Parking Mode Event Voice Notifications : YES
- Imaging Sensor :
- Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Video Codec : H.264 (AVC)
- Image Quality and Bitrate Front/Rear :
- Highest (Extreme): 25+10 Mbps
- Highest: 12+10 Mbps
- High: 10+8 Mbps
- Normal: 8+6 Mbps
- Format Free : YES (Adaptive)
- Event File Overwrite Protection : YES (up to 50)
- SD Card Failure Alert : YES
- Scheduled Reboot : YES
- Video File Extension : MP4
- Microphone : Built-in
- Speaker : Built-in
- Impact Sensor : 3-Axis Acceleration Sensor
- LED Indicators Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED
- Button :
- Format Button: Press and hold format button for 5 seconds, and after a beep, release the button.
Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.- Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
- Operation Temperature : -20 °C − 80 °C (-4 °F − 176 °F)
- Storage Temperature : -20 °C − 80 °C (-4 °F − 176 °F )
- High Temp Cut Off : Approx. 80 °C (176 °F)
- Backup Battery : Built-in supercapacitor
- Input Power : DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
- Power Consumption Hour :
- Normal Mode (GPS On/2CH): Avg. 380mA / 12V
- Parking Mode (GPS Off/2CH): Avg. 300mA / 12V
* Actual power consumption may vary depending on use conditions and environment.
- Others : Adaptive Format-Free File Management System
- Bluetooth Built-in (V2.1+EDR/4.2)
- Built-in LTE
Ultrawide Infrared Interior Camera
The Infrared Camera secures the interior of your vehicle. The inconspicuous infrared LEDs automatically activate based on the ambient luminosity.
The camera’s spectacular clarity even in pitch black lighting conditions will procure peace of mind to taxi and rideshare drivers.
With its ultrawide 180-degree view angle, the camera can capture both the driver-side and passenger-side windows at the same time in most vehicles.
Using the BlackVue App or Viewer, you can further customize the way it operates.
- 180° Image Rotation to accommodate your setup: install the camera the way you like. If the image comes out upside down, just activate this feature and it will fix the image orientation.
- Security LED ON/OFF (for stealth in Parking Mode).
Seamless Pairing with the BlackVue App
Effortless setup. Secure. No password.
With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
LTE, Wi-Fi and GPS All Built-in
GNSS (GPS+GLONASS)
Speed: speed data will be overlaid in the video (can be turned off in the settings).
You can set speed display in Kilometers per hour (Km/h) or Miles per hour (Mph).
Location: visualize your vehicle’s location in the BlackVue App or Viewer’s Map.
Connect to your dashcam over Wi-Fi or the Cloud
Wi-Fi lets you connect to your BlackVue with a smartphone or tablet.
LTE gives you access to your BlackVue over the Cloud from anywhere, anytime.
BlackVue Cloud
Me and My Car. Connected.
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: located in the front camera, it detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.
Sleek Interface
Touch sensor
Tap the touch sensor to trigger Manual Event videos.
Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue DR900S-1CH can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Tamper-Proof Case (Optional)
The Tamper-Proof Case (reference: BTC-3A) is a security accessory that blocks physical access to the microSD card slot, and prevents the unplugging of the power and coaxial cables, thus highly reducing risks of data tampering.
Note: the BTC-3A replaces the original dashcam mount.
Native Parking Mode
Hardwiring cable included
DR900X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR900X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Intelligent Parking Mode
Protect your car when you are away.
BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR970X Series supports two Parking Mode options:
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 54 hours on a 32GB microSD card front and rear at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
