FineVu | GX1100 Front & Rear 64Gb Hardwire With FinePower 250 Battery
- 64GB MicroSD Card Included. (Upgradeable upto 256GB).
- FineVu | GX1000 Front & Rear 64Gb Hardwire.
- Built-in GPS.
- Resolution : 2560*1440P (Quad HD)(Front & rear)
- Lens angle : Front 136°, Rear 143°
- Built-in Wi-Fi.
- Image Sensor : 5.1M Pixels SONY STARVIS IMX335(Front & Rear)
- Speed Camera Alerts.
- Auto Night Vision.
- AI Heat Monitoring
- AI Damage Detection 2.0
- Power Saving Parking Mode.
- Time Lapse.
- ADAS Plus.
- Low Voltage Cut-off.
- Format Free (DFS).
- Battery : Supercapacitor.
- Buil-in Mic & Speaker.
- Power Consumption :
-Parking Mode : 5W
- Power Saving Parking Mode : 0.06W.
- 3 Year Device Warranty.
- Absolute Parking Guard.
- Live Motion Detection.
- Loop Recording.
- High Dynamic Range.
- Smartphone App : FineVu Wi-Fi App.
- PC Viewer : FineVu Player 2.0.
- Please note when purchasing a 2/3 channel combination dashcam for automobiles. Certain vehicles have complex tailgate applications from split tailgates to complex grommet arrangements, before a purchase is executed please either call us on 01274 733633 or email on info@vehicletrackingtech.co.uk beforehand so we can ascertain the information to hand.
- Please before purchasing a 2channel/multichannel dashcam combination for vans. Certain vans that are carpeted cannot have the rear dashcams installed. If any further assistance is required, please call on 01274 733633 or email on info@vehicletrackingtech.co.uk
NOTE : Regarding the Supplied & Fitted Options
(Supplied, inc VAT)
-
FineVu | OBD-II CABLE£39.99
What's in the box
- Dash Cam.
- Rear Camera
- Finepower 250 Battery Pack
- Hardwire Cable..
- Micro SD Card.
- Rear Camera Cable
- User Guide.
GX1100 Specifications
- Image Sensor :
- Front : 5.1M Pixels SONY STARVIS IMX335
- Rear : 5.1M Pixels SONY STARVIS IMX335.
- Resolution:
- Front 2k QUAD HD (2560X1440P) / 30FPS
- 2k QUAD HD (2560X1440P) / 30FPS
- Viewing angle:
- Front 136° (Diagonal)
- Rear 143° (Diagonal)
- Auto Night Vision.
- Built-in Mic & Speaker..
- Capacity: 256GB.
- Sensor: 3-Axis Accelerometer G-Sensor (3D, ±3G).
- GPS: Built-in GPS.
- WI-FI: Built-in Wi-Fi.
- Power Consumption :
- Parking Mode : 5W
- Power Saving Parking Mode : 0.06W
FinePower 250 Battery Specification
- Model : FinePower 250
- Battery Type : LiFePO₄ (Lithium Iron Phosphate) 9.6V / 8A
- Charging Time : Approx. 70 minutes
- Dimensions / Weight : 13.5 x 17.5 x 3.2 cm (5.31 x 6.89 x 1.26 in) / 965g
- Rated Output : 8.6V ~ 12.5V / 1A (Max 1.5A)
- Internal Protection : Fast charging protection, overcharge, over-discharge, overvoltage, and short-circuit protection
- Battery Safety Certification : XU103017 - 22001A
Caution
※ This product is compatible with vehicles that use a 12V electrical system.
It cannot be installed in large vehicles with a 24V system (e.g., dump trucks, buses, cargo trucks, etc.).
* If self-installation is difficult, please seek assistance from a professional installation service.
* Any issues or damage caused during self-installation are the responsibility of the user.
1. This product is intended for 12V vehicles and requires professional installation.
2. Do not install or operate the product in wet conditions to avoid electric shock or malfunction.
3. Install the product in a location where it will not be exposed to direct sunlight, which may cause failure or fire.
4. Disassembly, modification, or impact may lead to product damage or fire.
5. Do not use this product for any purposes other than its intended use.
6. Always use certified and compatible parts for installation.
7. Be sure to connect the fuse box wires to the correct IN/OUT terminals.
8. After connecting the dashcam power cable, connect it to the OUTPUT terminal of the auxiliary battery.
Key Features
PROTECT YOURSELF FROM FRAUDULENT CLAIMS
2K QHD Front Camera
2K QUAD HD forward facing dash camera with recording of 2560 x 1440 @ 30fps..
122° wide-angle lens, 5.1M pixels, SONY Exmor R STARVIS Image Sensor.
This front dash camera has a very compact design and can be placed in a discreet location in the front windscreen, matching any modern interior..
The front dash camera including it’s mount is only 96.5mm across and 70mm in height, weighing in at only 114g!
Due to it’s size, this enables the dashcam to be placed neatly behind your rear view mirror and out of your line of sight.
Wedged shaped in design, it is installed at the angle of the windscreen, therefore does not obstruct your field of view.
An additional bonus is the absence of an LCD screen.
Unlike other older conventional dash cameras, it simply has small lights to alert you to it’s charging and recording state, thus no distractions!
To view live footage or historic footage, you simply connect the mobile app to the dash camera.
This quality of footage will certainly capture number plates, accidents and any other incidents you wish to view with superior clarity.
2K QHD Rear Camera
Rear window camera with the same recording quality as the front dashcam.
he rear dash camera can be placed in a discreet location in the rear window.
With the inclusion of it’s mount, this rear dashcam is only 46.85mm across and 36.5 in height, weighing in at a miniscule 23g!
Having rear dash cam footage can significantly reduce the time taken for insurance claims, as evidence can be provided straight away, resulting in less time taken for investigations.
Speed Camera Alerts
This feature fully supports geographical details of the entire United Kingdom.
Notifications for SEVEN different traffic enforcement camera types around the U.K are provided to the driver on approach.
Accurate location information is obtained via the dash camera’s built in GPS.
An audible warning is given in advance. Such as “Speed camera ahead”.
In addition, the driver is also alerted if entering a known mobile speed camera enforcement area or if a red light camera is in operation.
-
Camera Type: Fixed Speed
Enforcement Purpose: Speed Limit
Description: A permanently positioned camera enforcing the posted speed limit of the road.
-
Camera Type: Average Speed
Enforcement Purpose: Speed Limit
Description: A permanently positioned system of two or more cameras enforcing the posted speed limit of the road between each camera location..
-
Camera Type: Red Light Only
Enforcement Purpose: Red Light
Description: A permanently positioned camera enforcing the red-light phase of a traffic light at the stop line.
-
Camera Type: Fixed Speed
Enforcement Purpose: Speed Limit
Description: A permanently positioned camera enforcing the posted speed limit of the road.
-
Camera Type: Red & Speed
Enforcement Purpose: Red Light & Speed Limit
Description: A permanently positioned camera enforcing the red-light phase of a traffic light at the stop line as well as the posted speed limit of the road at all times.
-
Camera Type: Mobile Zone
Enforcement Purpose: Speed Limit
Description: An area of regular enforcement for the posted speed limit of the road using portable equipment. There may or may not be some infrastructure present such as hard standing, a layby or sensors in the road surface. Such zones may cover several locations through a village or along a road as a single zone alert.
-
Camera Type: Temporary Speed
Enforcement Purpose: Speed Limit
Description: A location where a camera is in position on a non-permanent basis. A housing or permanent base may be evident of the location such cameras are placed.
-
Camera Type: Variable
Enforcement Purpose: Speed Limit
Description: A permanently positioned camera enforcing the speed limit of the road as indicated by speeds as displayed on signage present. This may be set speeds at times of day or a constant variation based on traffic levels.
Note: Never rely on technology to inform you if you are speeding. It is the driver’s responsibility to ensure safe driving.
Live Motion Detection
Live Motion Detection is where either the front or rear camera detects movement in front of the camera, such as someone walking down your driveway or sneaking around your vehicle!
A potential vandal does not even need to touch the vehicle, although the camera system will still turn on, record, and capture them in action.
More or less just like having CCTV in your vehicle.
At night, a security LED is present as a deterrent if the Motion Detection is activated, although this light can be turned off via the app if desired.
Absolute Parking Guard
Most other dash cameras with Parking Mode record once the impact has been detected.
Meaning they did not actually capture the impact, only the aftermath.
The FineVu GX4K Absolute Parking Guard feature, secures 10 seconds of footage BEFORE the impact detection PLUS 10 seconds AFTER the impact.
A vital 20 seconds of the full incident scene in true 2K quality both front and rear.
Smartphone App
Connecting the FineVu GX1000 Dash Camera to the Smartphone App really is child’s play.
It’s just so easy and simple!
All major functions of the dash camera are easy to use, such as viewing footage, live streaming of video, downloading recorded footage and if you wish, firmware updates.
A complete technical novice would have no issues connecting to the dash camera and navigating the app.
Smart AI Heat Monitoring
If the FineVu GX1000 Dashcam starts to overheat whilst in parking mode, the AI will automatically switch it to Power Saving Parking Mode.
Once the dash cam has cooled down and the temperature stabilises, AI will switch it back to Motion Parking Mode.
Although the UK typically has cooler weather, this feature can be a great advantage on some occasions during our hot summer months.
* This feature is only applicable during motion/time lapse parking mode.
Front Vehicle Motion Alert
Front Vehicle Motion Alert (FVMA) lowers the risk of accidents by warning the driver of potential road hazards.
As an example, when you pull up in traffic lights, some drivers do not pay attention to when the lights have now turned back to green./p>
As soon as you pull up behind another car, FVMA takes a note of this.
Once the car in front sets off, this movement is detected.
Subsequently the dashcam notifies you that the car in front has moved by playing an audible sound.
Lane Departure Warning System
An alert is triggered if your vehicle veers into another driving lane whilst in motion.
This is an additional safety feature to aid in preventing you falling asleep for instance, and drifting over into other lanes.
This setting can be disabled via the Smartphone App if you wish.
Prolonged Recording Time
POWER SAVING PARKING MODE
Consuming 98% less power, the FineVu GX400 records 2,325 hours more than standard parking mode.
* The number of recording-standby hours is based on maximum hours provided until low voltage cut-off initiates.
* Depending on the dashcam’s power consumption, environmental factors, and the vehicle’s battery condition, actual recording standby hours may vary.
Features
8,000mAh High-Capacity Battery for Fast Charging
FineVu Battery Pack - FinePower 250
Fuel Gauge
Display
Optimized for
FineVu
Dashcams
Seamless
Integration with
FineVu Dashcams
8,000mAh
Fast Charging
4-Level
Protection
High Temperature
Cut-Off
Globally
Certified
Highlyl Durable
Materials
Slim Design
Monitor Battery Level via Fuel Gauge Display
Smart Battery Pack Optimized for FineVu Dashcams
Fuel Gauge Display - With LED Indicators, Monitor Your Lithium Iron Phosphate Battery Level
LEDs show battery level at 0% / 25% / 50% / 75% / 100%
Auto Power Saving Parking Mode Activation
When the battery level drops below 20%
the dashcam automatically switches to Power Saving Parking Mode,
allowing efficient recording even under limited power conditions.
This feature is only available on FineVu dashcams that support “Power Saving Parking Mode”.
Optimized for FineVu Dashcams - Specially Designed Stop Mode for FineVu Dashcams
The built-in Stop Mode in the battery pack works in tandem with FineVu dashcams to significantly extend usage time.
Detects dashcam power consumption
When dashcam enters Power Saving Parking Mode, battery pack automatically enters Stop Mode
Eliminates unnecessary circuits and operations
Maximizes Power Efficiency
*Stop Mode is only supported on FineVu dashcams.
Seamless Intergration with FineVu Dashcams - Battery Status Displayed on Dashcam & App
CABLE-FREE CONNECTION Simply connect your phone and dash cam, the battery level will be displayed in the app
* When connecting to a non-FineVu dashcam, please turn the corresponding switch to OFF.
(If connected to a third-party product with the switch ON, some functions may not operate properly.)
* If additional accessories are connected to the ACC line of the output cable, please turn off this function before use.
(Some functions may not operate correctly when accessories are connected and the switch is ON.)
* When linked with a FineVu dashcam, the battery status display function becomes available
approximately 5 minutes after booting.
(Updates are pushed periodically.)
8,000mAh Fast Charging - 1,129 Hours (47 Days) Parking Surveillance. Only with 70 Minutes of charging
35 minutes of driving can provide up to 23 days (564 hours) of parking surveillance.
Full charge allows up to 47 days (1,129 hours) of uninterrupted monitoring
| Mode | Charging Time | |
|---|---|---|
| 35 min | 1 hr 10 min | |
| Parking Mode (Motion) | 8.5 hr | 17 hr |
| Power Saving Parking Mode | 23 days (564 hr) | 47 days (1,129 hr) |
* Power consumption and usage time may vary depending on the dashcam model and operating environment. * It takes approximately 1 hour and 10 minutes to fully charge the battery.
4-Level Protection - Reliable Battery Pack with 4-Level Protection System
The battery is equipped with a 4-Level Protection System,
providing greater peace of mind and safe operation.
Overcurrent
Protection Circuit
Protects the product from overvoltage and short circuits.
Discharge
Pretention Circuit
Prevents vehicle
battery discharge.
Dedicated PCM
for LiFePO₄
Ensures long-term safety
through overcharge/
discharge protection and
optimized cell balancing.
Intergrated Micom
Control System
Provides additional protection from overcurrent and overvoltage with
microcontroller-based control.
High Temperature Cut-Off - Even Safe In Extrem Heat Temperature
When the charging temperautre exceeds 80°C,
the system automatically cuts off power to protect both the dashcam and the battery pack.

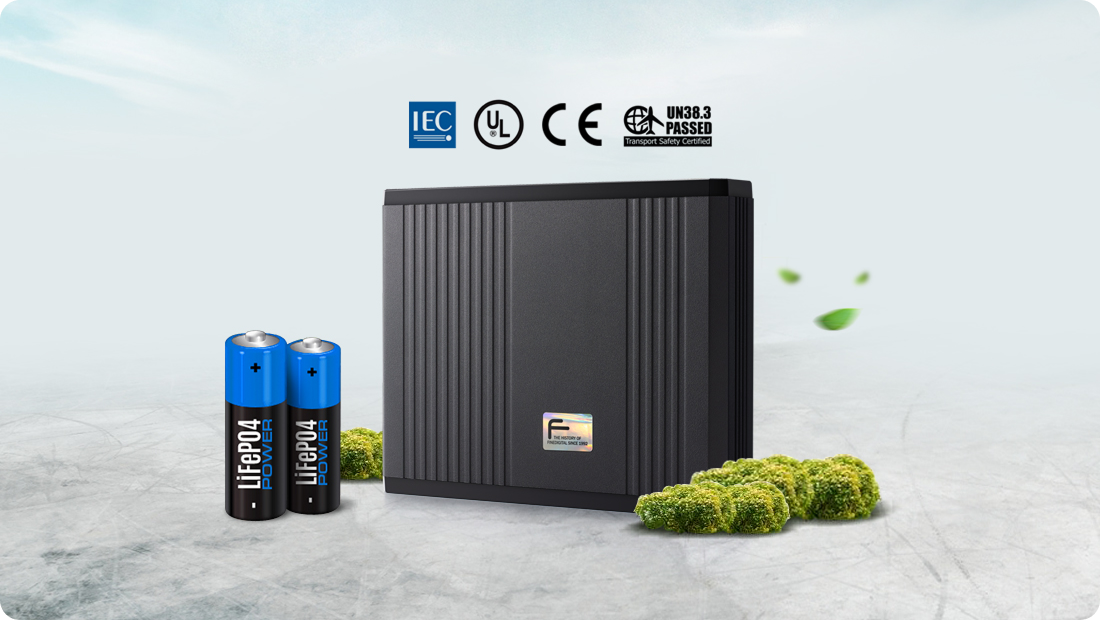

Globally Certified - High Reliability with International Safety Standards
FineVu’s battery pack users eco-friendly LiFePO4 cells and complies with major international certifications
IEC62133, UL, CE, and UN38.3 - ensuring peace of mind.
Compared to conventional lithium-ion or nickel-based batteries, it offers over 3 times the safety and stability.
Slim Design - Cutting-Edge Smart Features, With 3.2cm (1.26”) Ultra-Slim Design
Despite offering a fuel gauge and FineVu dashcam integration,
the ultra-slim 1.26-inch (3.2 cm) design ensures optimal installation flexibility.
Broad Compatibility
Multi Fuse Box Cable
Includes 4 types of multi fuse box cables as standard,making it compatible with a wide range of vehicle environments.
Tesla Y-Cable
(Sold Separately)
Y-shaped cable specifically
designed for Tesla vehicles.
Input Cable 5m
(Sold Separately)
Ensures long-term safety
through overcharge/
discharge protection and
optimized cell balancing.
Cigarette Lighter Cable 30cm (Sold Separately)
30cm cable for easy installation via a cigarette lighter socket.
