FineVu | GX36 Front & Rear Hardwire With FinePower 250 Battery
- MicroSD Card Not Included. (Capacity from 32GB upto 128GB).
- FineVu | GX36 Front 32Gb Hardwire with FinePower 250 Battery Pack.
- External GPS.
- Resolution : 1080P FHD (Both Front & Rear)
- Lens angle :
- Front : 140° (Diagonal)
- Rear : 124° (Diagonal)
- Built-in Wi-Fi.
- Image Sensor :
- Front : 2.1M pixels CMOS Image Sensor (1/2.8")
- Rear : 2M pixels CMOS Image Sensor (1/2.9")
- Battery : Supercapacitor.
- Display : Non-LCD.
- Acceleration Sensor : 3-axis acceleration sensor
- ADAS Plus.
- Speed Camera Alert.
- ADAS Plus.
- Built-in Mic & Speaker.
- Smart Time Lapse.
- FINEVU CLOUD & WI-FI APP (Note : Cloud Service is not available in UK at the moment ) .
- Auto Night vision
- 3 Year Device Warranty.
- Power Saving Mode.
- AI Heat Monitoring.
- Memory Allocation.
- Format Free 2.0.
- Optimized with HDR ( High Dynamic Range ).
- Lane Departure Warning System.
- Front Vehicle Motion Alert.
NOTE : Regarding the Supplied & Fitted Options
(Supplied, inc VAT)
-
FineVu | MicroSD Card 64 GB£29.99 -
FineVu | OBD-II CABLE£39.99
What's in the box
- Dash Cam.
- Rear Camera
- FinePower 250 Battery Pack
- Power Cable.
- Micro SD Card & Adapter.
- Rear Camera Cable
- Cradle
- User Manual.
GX36 Specifications
- Image Sensor :
- Front : 2.1M pixels CMOS Image Sensor (1/2.8")
- Rear : 2M pixels CMOS Image Sensor (1/2.9")
- Resolution : 1080p FHD ( Both Front & Rear )
- Viewing Angle :
- Front : 140° (Diagonal)
- Rear : 124° (Diagonal)
- Display : Non-LCD.
- Acceleration Sensor : 3-axis acceleration sensor
- GPS : External
- Wi-Fi : Built-in(Dongle).
- Storage Capacity : FineVu Micro SD Card (32GB ~ 128GB).
- Battery : Supercapacitor.
- MIC : Built-In.
- Speaker : Built-In.
- Security LED : Front : White / Rear : White.
- Input Power : DC 12V~24V.
- Power Consumption :
- Parking Mode : 4.2W
- Power Saving Parking Mode : 0.06W
- High-Temperature Cut-Off : AI Heat Monitoring.
- Low Voltage Cut-Off : Supported.
- PC Viewer : FineVu Player 2.0.
FinePower 250 Battery Specifications
- Model : FinePower 250
- Battery Type : LiFePO₄ (Lithium Iron Phosphate) 9.6V / 8A
- Charging Time : Approx. 70 minutes
- Dimensions / Weight : 13.5 x 17.5 x 3.2 cm (5.31 x 6.89 x 1.26 in) / 965g
- Rated Output : 8.6V ~ 12.5V / 1A (Max 1.5A)
- Internal Protection : Fast charging protection, overcharge, over-discharge, overvoltage, and short-circuit protection
- Battery Safety Certification : XU103017 - 22001A
Caution
※ This product is compatible with vehicles that use a 12V electrical system.
It cannot be installed in large vehicles with a 24V system (e.g., dump trucks, buses, cargo trucks, etc.).
* If self-installation is difficult, please seek assistance from a professional installation service.
* Any issues or damage caused during self-installation are the responsibility of the user.
1. This product is intended for 12V vehicles and requires professional installation.
2. Do not install or operate the product in wet conditions to avoid electric shock or malfunction.
3. Install the product in a location where it will not be exposed to direct sunlight, which may cause failure or fire.
4. Disassembly, modification, or impact may lead to product damage or fire.
5. Do not use this product for any purposes other than its intended use.
6. Always use certified and compatible parts for installation.
7. Be sure to connect the fuse box wires to the correct IN/OUT terminals.
8. After connecting the dashcam power cable, connect it to the OUTPUT terminal of the auxiliary battery.
Features
FHD/FHD
SONY STARVIS
Sensor
SMART
TIME LAPSE
BUILT-IN
GPS & WI-FI
FINEVU CLOUD
& WI-FI APP
CUSTOMIZINGOSD PHRASES
Auto
Night Vision
ADAS PLUS
NON-LCD
SPEED CAMERA
ALERT
POWER SAVING
PARKING MODE
AI HEAT
MONITORING
LOW VOLTAGE
CUT-OFF
MEMORY
ALLOCATION
FORMAT
FREE 2.0
DUAL FULL HD
FRONT & REAR FULL HD RECORDING
Front
Rear
* This video was taken in FHD quality. The license plate is blurred to protect personal information.
* The quality of recording may vary depending on conditions.
(including camera angle, windshield conditions, and light conditions)

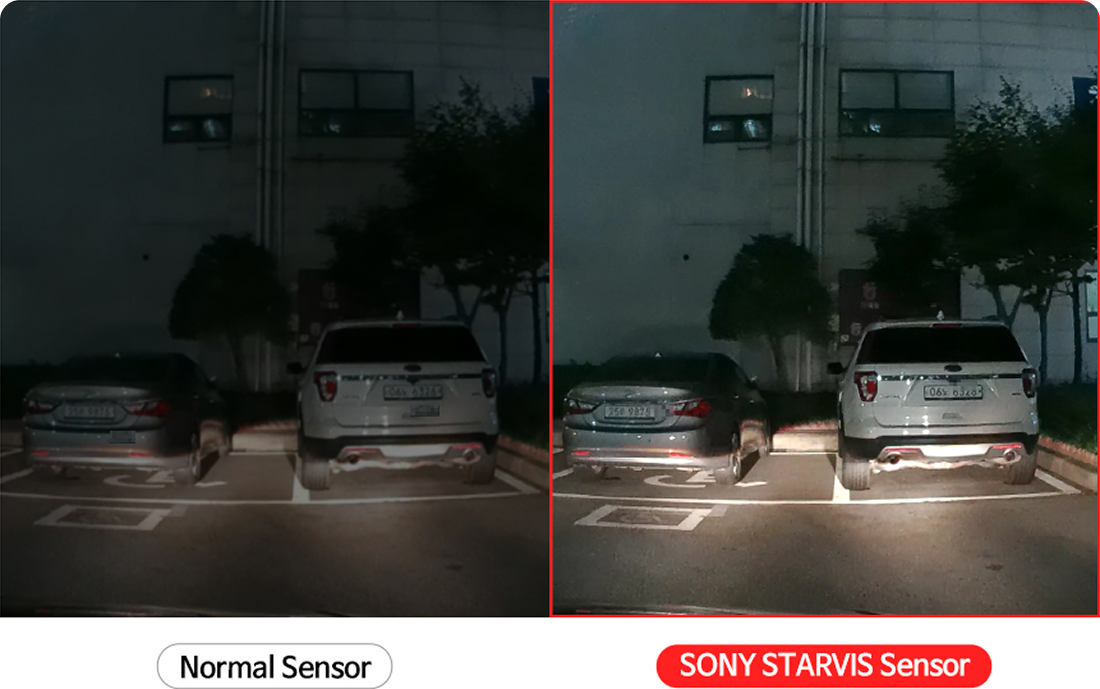

SONY STARVIS SENSOR
CLEAR RECORDING EVEN AT NIGHT
SONY STARVIS SENSOR provides unimaginably vivid image in regardless of day or night.
TIME-LAPSE
RECORD YOUR DRIVE WITH TIME-LAPSE
TIME-LAPSE feature capture up to 743 minutes with no data loss.
* TIME-LAPSE Specifications were measured under 32GB and compared to the default driving mode.
* Factors such as collision events may affect the storage volume.
EASY WI-FI PAIRING WITH FINEVU APP
CHECK RECORDED VIDEOS AND UPDATE
FIRMWARE ON FINEVU APP
* TIME-LAPSE Specifications were measured under 32GB and compared to the default driving mode.
* Factors such as collision events may affect the storage volume.
HDR
OPTIMIZED WITH HIGH DYNAMIC RANGE(HDR)
Exposure is balanced for keeping all details intact.
AUTO NIGHT VISION
AUTOMATED NIGHT VISION ADJUSTS
BRIGHTNESS AND CONTRAST TO SECURE CLARITY
Smart AI system assesses light environment and finds the perfect time to switch it on.Keeping you completely hand-free.
Night
Day
* This video was taken in FHD quality. The license plate is blurred to protect personal information.
* The quality of recording may vary depending on conditions.
(including camera angle, windshield conditions, and light conditions)
ADAS PLUS
ADVANCED DRIVER SAFETY WARNING SYSTEMS KEEP YOU SAFE ON THE ROAD
LANE DEPARTURE WARNING SYSTEM (LDWS)
Alert if triggered as vehicle veers off driving lane while in motion.

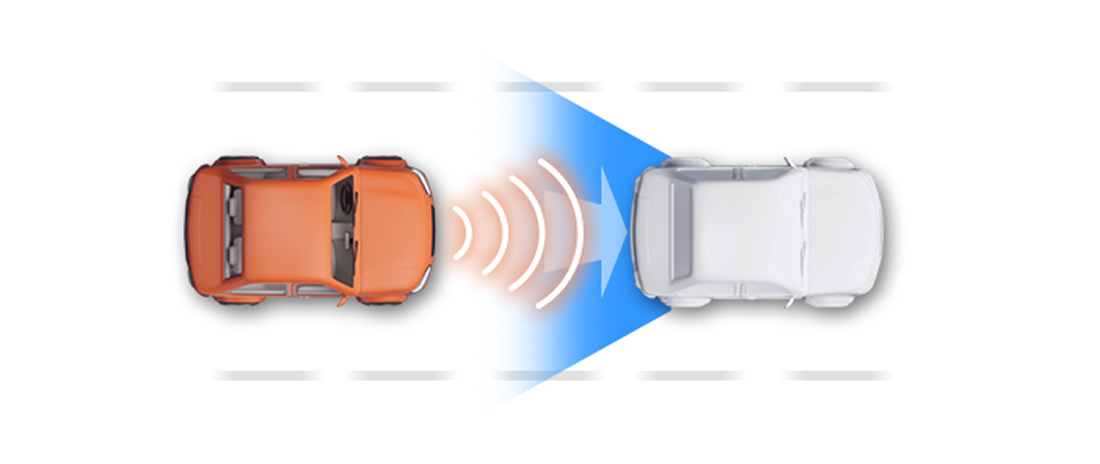

FRONT VEHICLE MOTION ALERT (FVMA)
While stopped in traffic, the movement of stationary vehicle ahead triggers alert to driver.
NON-LCD
COMPACT SIZE, UNOBSTRUCTED VIEW,
READY FOR ANY ROAD
With FineVu compact design, easily mount anywhere without blocking
your rearview mirror.Quick and simple installation in the perfect position for you.
SPEED CAMERA ALERT
FINEVU KEEPS UP WITH THE
LATEST SAFETY CAMERA ALERT
FineVu safety camera database is always up to date. Download
the quarterly updates,and get informed with FineVu’s voice
alerts.Worry no more about accidents and speeding tickets.
* Database is updated quarterly.
POWER SAVING PARKING MODE
PROLONGED RECORDING TIME
Consuming 98% less power, GX36 records 2,325 more hours than standard parking mode.
| Parking Mode (motion) | Power Saving Parking Mode | |
|---|---|---|
| Power consumption | 4.2 W | 0.06 W |
| Parking Mode Duration | 33 hours | 2,325 hours |
AI HEAT MONITORING
FINEVU KEEPS UP WITH THE
LATEST SAFETY CAMERA ALERT
If FineVu starts to overheat while at parking mode, the AI will
automatically switch it to Power Saving Parking Mode.When it cools down
and temperature stabilizes, AI will switch it back to motion parking mode.
* The feature is only applicable during motion/time lapse parking mode.
LOW VOLTAGE CUT-OFF
BATTERY PROTECTION INTEGRATED
FineVu is equipped with Battery Protection System.Dashcam powers down
when battery voltage falls below preset value.Select your-car-specific
power setting on FineVu CLOUD & Wi-Fi app to maximize both dashcam and
car battery with a single tap.
* FineVu recommends changing the low voltage settings to ‘hybrid’ when using the ISG system.
MEMORY ALLOCATION
EFFICIENT MEMORY MANAGEMENT
The memory allocation function enables efficient memory managementaccording to the driving pattern.
* The MicroSD card is formatted when changing the memory allocation.
* The memory format type is FAT32, and if the format type is different,
the dash cam proceeds with formatting automatically.
(After formatting, once you insert it into the device and supply it with power, the formatting will be in progress to set the memory.)
FORMAT FREE 2.0
ADVANCED FORMAT FREE TECHNOLOGY
Format Free 2.0 technology eliminates the needs of manual
reformatting the micro SD memory card.Also, it helps
to extend memory card lifetime and improve reliability.

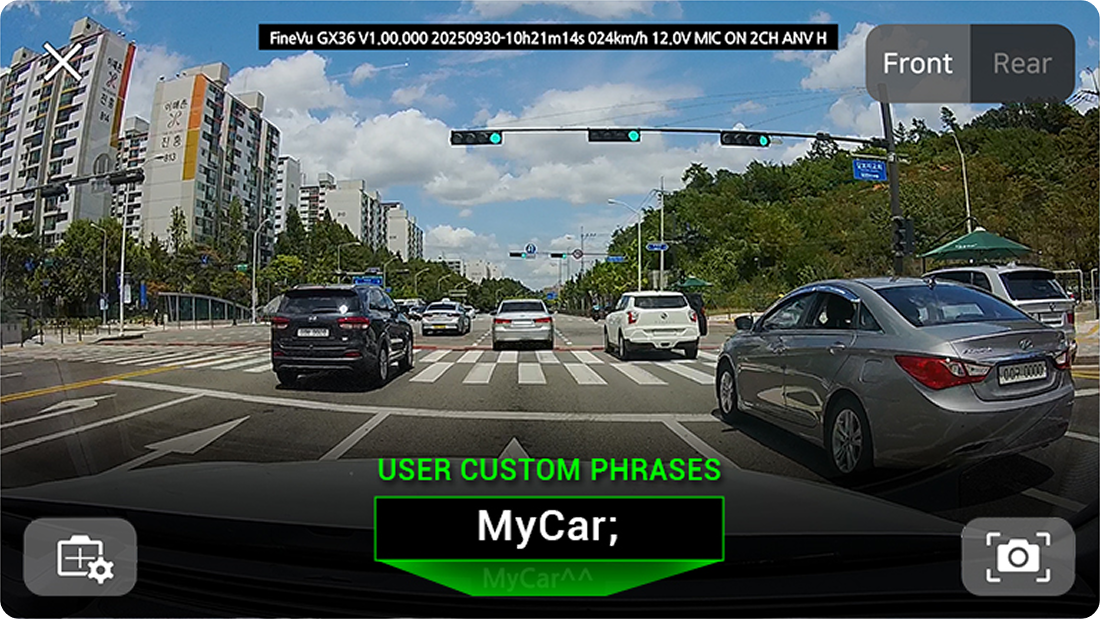

CUSTOMIZING OSD PHRASES
SYMBOLIC NAME ACCORDING TO USER’S TASTE
Users can change the wording of the On Screen Display(OSD) to
user’s preference. Up to 20 characters can be entered in English
letters, numbers, and special characters.
* OSD Phrases can be set up in the FineVu CLOUD & Wi-Fi app.
* Special characters are only available for`~!@$^&*()-_=+:;[]<>? (Spaces are not supported.)

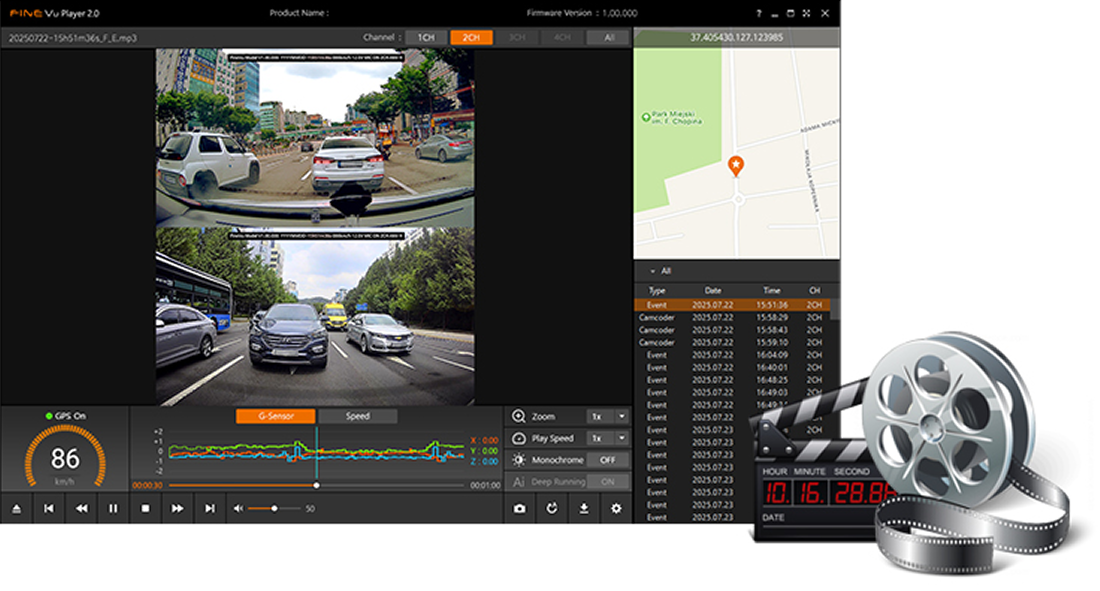

FINEVU PC PLAYER
THE OPTIMAL DASH CAM ANALYSIS PROGRAM,
FINEVU PLAYER 2.0
FineVu PC player is an easy-to-use PC software for FineVu dash
cam.You can playback, screenshot, enlarge the images with
full resolution andmonitor the video records conveniently on your PC.
* This feature can be used after installing FineVu Player program.
Features
8,000mAh High-Capacity Battery for Fast Charging
FineVu Battery Pack - FinePower 250
Fuel Gauge
Display
Optimized for
FineVu
Dashcams
Seamless
Integration with
FineVu Dashcams
8,000mAh
Fast Charging
4-Level
Protection
High Temperature
Cut-Off
Globally
Certified
Highlyl Durable
Materials
Slim Design
Monitor Battery Level via Fuel Gauge Display
Smart Battery Pack Optimized for FineVu Dashcams
Fuel Gauge Display - With LED Indicators, Monitor Your Lithium Iron Phosphate Battery Level
LEDs show battery level at 0% / 25% / 50% / 75% / 100%
Auto Power Saving Parking Mode Activation
When the battery level drops below 20%
the dashcam automatically switches to Power Saving Parking Mode,
allowing efficient recording even under limited power conditions.
This feature is only available on FineVu dashcams that support “Power Saving Parking Mode”.
Optimized for FineVu Dashcams - Specially Designed Stop Mode for FineVu Dashcams
The built-in Stop Mode in the battery pack works in tandem with FineVu dashcams to significantly extend usage time.
Detects dashcam power consumption
When dashcam enters Power Saving Parking Mode, battery pack automatically enters Stop Mode
Eliminates unnecessary circuits and operations
Maximizes Power Efficiency
*Stop Mode is only supported on FineVu dashcams.
Seamless Intergration with FineVu Dashcams - Battery Status Displayed on Dashcam & App
CABLE-FREE CONNECTION Simply connect your phone and dash cam, the battery level will be displayed in the app
* When connecting to a non-FineVu dashcam, please turn the corresponding switch to OFF.
(If connected to a third-party product with the switch ON, some functions may not operate properly.)
* If additional accessories are connected to the ACC line of the output cable, please turn off this function before use.
(Some functions may not operate correctly when accessories are connected and the switch is ON.)
* When linked with a FineVu dashcam, the battery status display function becomes available
approximately 5 minutes after booting.
(Updates are pushed periodically.)
8,000mAh Fast Charging - 1,129 Hours (47 Days) Parking Surveillance. Only with 70 Minutes of charging
35 minutes of driving can provide up to 23 days (564 hours) of parking surveillance.
Full charge allows up to 47 days (1,129 hours) of uninterrupted monitoring
| Mode | Charging Time | |
|---|---|---|
| 35 min | 1 hr 10 min | |
| Parking Mode (Motion) | 8.5 hr | 17 hr |
| Power Saving Parking Mode | 23 days (564 hr) | 47 days (1,129 hr) |
* Power consumption and usage time may vary depending on the dashcam model and operating environment. * It takes approximately 1 hour and 10 minutes to fully charge the battery.
4-Level Protection - Reliable Battery Pack with 4-Level Protection System
The battery is equipped with a 4-Level Protection System,
providing greater peace of mind and safe operation.
Overcurrent
Protection Circuit
Protects the product from overvoltage and short circuits.
Discharge
Pretention Circuit
Prevents vehicle
battery discharge.
Dedicated PCM
for LiFePO₄
Ensures long-term safety
through overcharge/
discharge protection and
optimized cell balancing.
Intergrated Micom
Control System
Provides additional protection from overcurrent and overvoltage with
microcontroller-based control.
High Temperature Cut-Off - Even Safe In Extrem Heat Temperature
When the charging temperautre exceeds 80°C,
the system automatically cuts off power to protect both the dashcam and the battery pack.
Globally Certified - High Reliability with International Safety Standards
FineVu’s battery pack users eco-friendly LiFePO4 cells and complies with major international certifications
IEC62133, UL, CE, and UN38.3 - ensuring peace of mind.
Compared to conventional lithium-ion or nickel-based batteries, it offers over 3 times the safety and stability.
Slim Design - Cutting-Edge Smart Features, With 3.2cm (1.26”) Ultra-Slim Design
Despite offering a fuel gauge and FineVu dashcam integration,
the ultra-slim 1.26-inch (3.2 cm) design ensures optimal installation flexibility.
Broad Compatibility
Multi Fuse Box Cable
Includes 4 types of multi fuse box cables as standard,making it compatible with a wide range of vehicle environments.
Tesla Y-Cable
(Sold Separately)
Y-shaped cable specifically
designed for Tesla vehicles.
Input Cable 5m
(Sold Separately)
Ensures long-term safety
through overcharge/
discharge protection and
optimized cell balancing.
Cigarette Lighter Cable 30cm (Sold Separately)
30cm cable for easy installation via a cigarette lighter socket.
