Thinkware iVolt | Mini External Battery (BAB-50)
Specifications
- Input power: 12.0V – 15.5V / 10A MAX
- Output voltage / Current: 12.0V – 14.6V / 2.0A MAX
- Charging voltage / Current: 14.6V / 7A (Hardwire). 14.6V / 5A (Plug & Play)
- Charging time: About 45 minutes (Hardwire). About 80 minutes (Plug & Play)
- Usage time: 1ch: about 20 hours (2.9Wh). 2ch: about 16 hours (3.5Wh)
- Battery: LiFePo4 (Lithium iron phosphate)
- Battery capacity: 12.8V 4,500mAh 57.6Wh
- Dimensions: 165.4(W) x 131.2(L) x 36.8(H)
- Weight : 0.95kg
- Operation temperature: Charging : 0°C~45°C, Discharging: -10°C~60°C. (Cell skin temperature cannot exceed 80°C)
- Storage temperature: -10°C ~ 60°C
Storage humidity range: 65% ±20%RH
(Recommended to store 23 ±5°C for long term)
(Supplied, inc VAT)

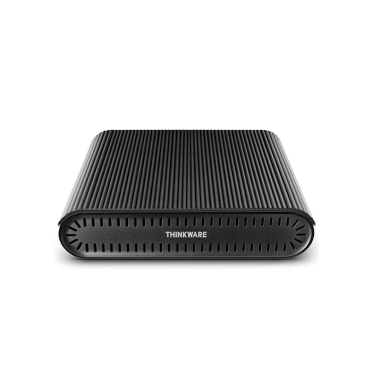

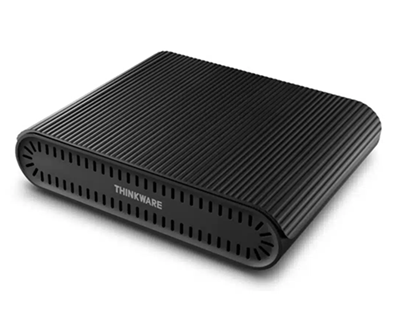

Thinkware iVolt Mini External Battery
-
Increase the duration of the Parking Surveillance mode of your Thinkware Dash Cam with the iVolt Mini External Battery.
-
It allows your Thinkware dash cam to remain in Parking mode for up to 20 hours, or 16 hours with a rear cam added and even longer dependent on the camera and mode used.
-
Compatible with all THINKWARE Dash Cam models.
-
Please note that this requires the Hardwired version of the Dashcam
Hardwire or Plug & Play?
Hardwire

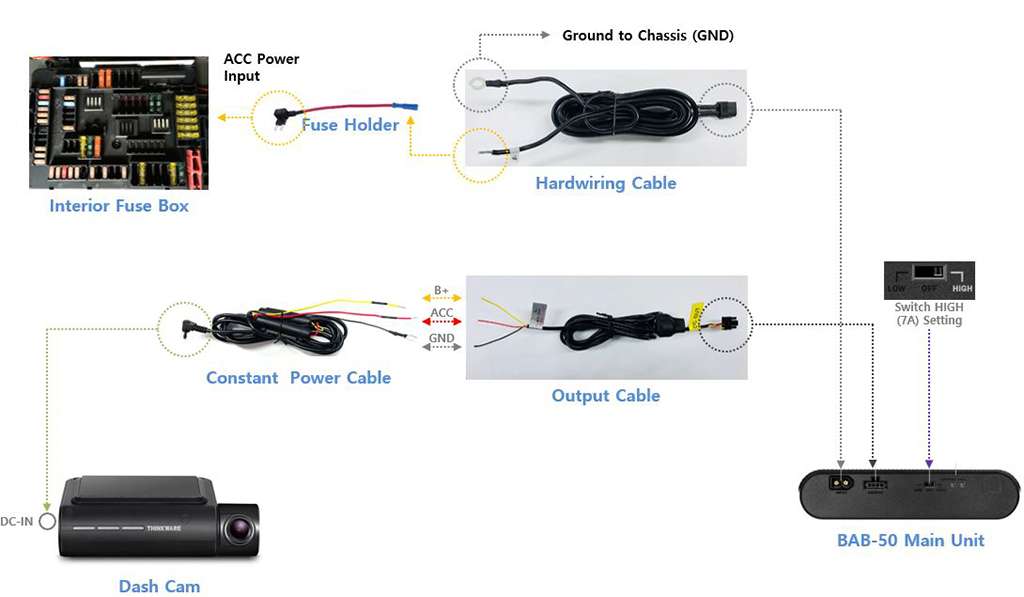

Looking to extend the duration of the dashcams parking mode, then install the iVolt into your vehicle. The Hardwired version wires directly into your vehicles fuse box, allowing the iVolt to charge whilst the vehicles ignition is on, this allows for the iVolt to be fully recharged in 45 minute
The iVolt battery is also fully recharged in approximately 80 minutes while driving.
!Please Note the 12v Accessory socket must be ignition controlled!
Recommended for vehicles that use an intelligent battery system (IBS) like some models of BMW, as they often raise an error code detecting the additional power drain whilst in parking mode.
Do I need to use a Dash Cam Battery Pack?
Thinkware Dash Cams offer a few different methods in which the device is powered.
All Thinkware Dash Cams come standard with a built-in voltmeter and battery protection settings to ensure you will not return to your vehicle with a dead battery. These Voltage Settings can be utilized with the Hardwiring Kit or OBD-II Harness to protect your battery when using Parking Mode.
However, If you wish to record an extended amount of Parking Footage, or if you have a Luxury Vehicle/Small Vehicle Battery the Thinkware iVolt Mini Battery Pack may be the right choice for you.
The Benefits of using a Dash Cam Battery Pack
Extended Parking Mode
When Hardwired the Dash Cam will record in Parking Mode for approximately 8 hours (depending on vehicle’s battery and the voltage cut-off setting) before powering down to save power. With the iVolt Mini, your 1 Channel Dash Cam can run for 20 hours, or if you have a 2 Channel Dash Cam, 16 hours in Parking Mode before needing to recharge the battery pack.
Safe for Luxury Vehicles
If you own a Luxury Vehicle such as a BMW, battery drainage not only means replacing the vehicle’s battery but it can also require the dealership to reset the vehicle’s electronics, which can turn into an extremely expensive fix.
By using a Dash Cam Battery Pack, you will still be able to use our Advanced Parking Mode risk-free.
Avoid Wear and Tear
With a Hardwired Dash Cam, the constant discharge on the battery over a long period of time can cause wear and tear. The iVolt Mini Battery Pack only draws power to charge when you are driving the vehicle, which prevents damage to the vehicle’s battery over time. With the ignition off, the Dash Cam relies solely on the Battery Pack for power, eliminating the need to draw power from the vehicle’s battery completely
Why use a Dash Cam Battery Pack instead of a Portable USB Battery Pack?
Portable USB Battery Packs feature different technology than a dedicated Dash Cam Battery Pack. Portable USB Battery Packs typically use Lithium-Ion batteries to provide power to the device. Our Thinkware iVolt Mini utilizes a LiFePo4 (Lithium iron phosphate) battery.
The LiFePo4 battery is safer for in-vehicle use as it was designed to withhold extreme temperatures. Lithium-Ion Batteries used in these Portable USB Battery Packs have been known to combust under extreme heat.
In addition, Portable USB Batteries typically have a long charging time (overnight) compared to our Thinkware iVolt Mini which fully recharges in 45 mins while driving.
Set Up
While dashcams draw a small amount of power, they are unlikely to significantly impact your vehicle's battery life. However, it's a good idea to use parking mode with caution.
Dashcams complement safe driving practices by providing evidence in the event of incidents. They are a valuable addition to your safety and security toolkit, enhancing your confidence on the road.
Regular maintenance includes keep formatting SD cards at regular intervals for optimum performance, lens clean, ensuring the power source is stable, and periodically updating the dashcam's firmware for performance improvements.
Dashcams are generally legal to use for personal use, but their use may be subject to data protection regulations. Our experts can provide guidance on legal and ethical usage.
Many dashcams feature a parking mode that monitors your vehicle even when it's parked. It can capture incidents such as accidents, break-ins, or vandalism, providing valuable evidence.
Yes, you can install multiple dashcams for full coverage. Some systems offer front and rear cameras, while others allow for additional side or interior cameras for a complete recording solution.
Dashcam footage is typically stored on an SD card or can be transferred to a computer or smartphone for viewing. It's advisable to back up important footage to a computer or cloud storage.
Do dashcams work at night or in low-light conditions, and do they require special features for this?
The dashcams we offer are equipped with night vision or low-light recording capabilities, ensuring clear video footage even in challenging lighting conditions.
Dashcams are not typically included as standard features in vehicles. They are separate accessories that you can add to your car to enjoy the benefits of video recording while driving.
You can't explain that! Just kidding. Dash cams record video to a removable memory card inside the camera itself. Any time your car is on and the dash cam is plugged in, it is acting as your backup witness. Dash cams automatically start recording when they are powered on, and stop recording once you turn your car off. Note: Some dash cam models have the ability to keep recording even while the vehicle is parked! This is known as "parking mode".
Once you have purchased a dash, in most cases this is all you need to do to be up and running:
- Insert a memory card.
- Attach the suction-cup mount to your windshield.
- Plug the power cord into the power source (cigarette lighter or other).
Done! Since recording is automatic, just drive your vehicle like you normally would, and enjoy the fact that you are now "protected by dashcam"!.
Please note that the above is applicable to plug & play dash cams.
Read moreDash cams, or dashboard video cameras, got their name due to originally being mounted on the dashboard of vehicles (mostly police cars). Now, most dash cams mount to a car's windshield with a secure and easy to use suction cup mount or strong adhesive pad.
While many of our dashcams can be easily self-installed, some vehicles, especially those with specific features like split tailgates or complex wiring, may require professional assistance. Our expert installers can handle these challenges, ensuring optimal placement and functionality of your dashcam.
: Absolutely! Our dashcams allow you to access and download recorded footage remotely through a user-friendly online platform or mobile app. For added convenience, some models also support SD card storage, providing an offline option to review your recordings.
If your dash cam is plug & play you can install it your self or you may call our experts to install it in your vehicle however if your dash cam is hardwired then it is adviseable to have our competent engineers install it in your vehicle.
