Blackvue | DR770X Box Standard
- 64GB Micro SD card Included (Choose capacity From 64GB to 256GB)..
- Blackvue | DR770X Box Standard(Both Hardwire and Plug & play).
- Built-in GPS
- Front Full HD 1080p @60fps , Rear Full HD 1080p @30fps.
- Viewing Angle : Front Diagonal 139°, Rear Diagonal 116°,Interior Diagonal 180°.
- Built-in wifi.
- Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Built for Stealth and Security Triple Camera Protection + Secure Recording Unit.

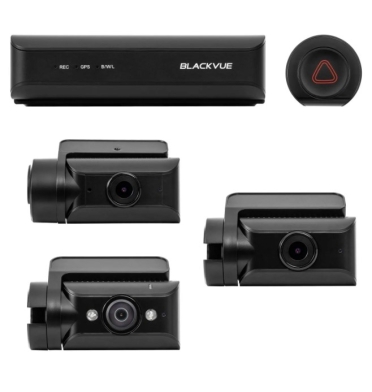

- Three Cameras and Secure Recording Box.
- Seamless Pairing with the BlackVue App.
- GPS, Wi-Fi and Optional LTE.
- Ultrawide Infrared Interior Camera.
- Built-in Speaker, Impact Sensor and Motion Detection.
- Blackvue | DR770X Box Standard Recording Time PDF.
- SOS Button.
- BlackVue App (iOS, Android) and Viewer windows/Mac/Web).
- Blackvue Cloud.
- Your videos are safe.
- Native Parking Mode.
- LTE Connectivity Module (Optional).
- Built-in Tamper-Proofing.
- Intelligent Parking Mode.
- Please note when purchasing a 2/3 channel combination dashcam for automobiles. Certain vehicles have complex tailgate applications from split tailgates to complex grommet arrangements, before a purchase is executed please either call us on 01274 733633 or email on info@vehicletrackingtech.co.uk beforehand so we can ascertain the information to hand.
- Please before purchasing a 2channel/multichannel dashcam combination for vans. Certain vans that are carpeted cannot have the rear dashcams installed. If any further assistance is required, please call on 01274 733633 or email on info@vehicletrackingtech.co.uk
NOTE : Regarding the Supplied & Fitted Options
(Supplied, inc VAT)
What's in the box
- Main Unit
- Front Camera
- Rear IR Camera
- Rear Camera
- SOS Button
- External GPS
- Main unit cigarette lighter power cable (3p)
- Camera connection cable (3EA)
- Main unit hardwiring power cable (3p)
- microSD card
- microSD card reader
- Quick start guide
- Velcro strip
- Pry tool
- Main unit key
- Allen wrench
- Spare mount sticky pads
- Screws
- Cable clips (12EA)
Specifications
- Resolution : Full HD + Full HD + Full HD (Front + Rear + Interior)
- Blackvue Cloud
- External GPS
- Built-in Wi-fi
- LTE
- Memory Support : microSD card up to 256GB
- Recording Modes : Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
- Parking Mode : YES (hardwiring cable included)
- Parking Mode Event Voice Notifications : YES
- Imaging Sensor:
- Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Viewing Angle:
- Front : Diagonal 139°, Horizontal 116°, Vertical 61°
-Rear : Diagonal 116°, Horizontal 97°, Vertical 51°
Interior IR : Diagonal 180°, Horizontal 150°, Vertical 93°
- Resolution Frame Rate Front / Rear / Interior IR : Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming.
- Video Codec : H.264 (AVC)
- Image Quality and Bitrate Front/Rear
Front / Rear / Interior:
- Highest(Extreme): 16 + 10 + 10 Mbps
- Highest: 12 + 10 + 10 Mbps
- High 10 + 8 + 8 Mbps
- Normal: 8 + 6 + 6 Mbps
- Format Free : YES (Adaptive)
- Event File Overwrite Protection : YES (up to 51)
- SD Card Failure Alert : YES
- Scheduled Reboot : YES
- Video File Extension : MP4
- Wi-Fi : Built-in (802.11 b.g.n)
- Cloud Compatible : YES
- GPS : External (Dual Band : GPS, GLONASS)
- Microphone : Built-in
- Speaker : Built-in
- Impact Sensor : 3-Axis Acceleration Sensor
- LED Indicators:
- Main unit : Recording LED, GPS LED, BT/Wi-Fi/LTE LED
- Front : Front & Rear Security LED
- Interior IR : Front&Rear Security LED
- EB-1 : Operating/Battery low voltage LED
Rear Camera IR Illumination : Interior IR : 940nm (2 Infrared (IR) LEDS)
- Button : EB-1 button (Press the button – manual recording.)
- Operation Temperature : -20°C – 70°C (-4°F – 158°F )
- Storage Temperature : -20°C – 80°C (-4°F – 176°F )
- High Temp Cut Off Approx. 80 °C (176 °F )
- Backup Battery : Built-in supercapacitor
- Input Power : DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
- Power Consumption Hour :
- Normal Mode (GPS On / 3CH) : Avg. 730mA / 12V
- Parking Mode (GPS Off / 3CH) : Avg. 610mA / 12V
* Approx. 40mA increase in current when Interior Camera IR LEDs are ON. * Approx. 60mA increase in current when Rear Truck Camera IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment.
- Adaptive Format Free File Management System
- Advanced Driver Assistance System
- LDWS (Lane Departure Warning System)
- FVSA (Forward Vehicle Start Alarm)
- Bluetooth : Built-in (V2.1+EDR/4.2)
- LTE : External (optional)
Three Cameras and Secure Recording Box
Front, interior and rear protection.
All three cameras use back-illuminated STARVIS image sensors that produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.
Ultra-wide interior-facing camera: the 180-degree view angle allows to cover both driver-side and passenger-side windows in most vehicles. With its infrared illumination LEDs, it captures clear details even in complete darkness.
Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
Seamless Pairing with the BlackVue App
Effortless setup. Secure. No password.
With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
Wi-Fi, GPS and Optional LTE
External GPS(Included): embeds speed and location data in your videos. This allows you to track your vehicle in real-time via BlackVue Cloud and view its location on a map during playback in the BlackVue App or Viewer.
Wi-Fi: connect to your BlackVue with a smartphone or tablet for fast file transfer. Wi-Fi also lets your BlackVue connect to BlackVue Cloud using a mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module to the USB port for the best Cloud experience.
(*) SIM card not included.
Ultrawide Infrared Interior Camera
The Infrared Camera secures the interior of your vehicle. The inconspicuous infrared LEDs automatically activate based on the ambient light.
The camera’s spectacular clarity even in pitch black lighting conditions will procure peace of mind to taxi and rideshare drivers.
The camera’s spectacular clarity even in pitch black lighting conditions will procure peace of mind to taxi and rideshare drivers.
With its ultrawide 180-degree view angle, the camera can capture both the driver-side and passenger-side windows at the same time in most vehicles.
Using the BlackVue App or Viewer, you can further customize the way it operates.
- 180° Image Rotation (in settings) to accommodate your setup: if the image comes out upside down, just activate this feature and it will fix the image orientation.
- Security LED ON/OFF (for stealth in Parking Mode)
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: located in the front camera, it detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
SOS Button
1. Install it in an easy-to-reach location.
2. Hold the button to pair it with Box unit (first-time use only).
3. Press the button to trigger Manual Event recording.
4. In the BlackVue App or Viewer, use the file type filters to quickly find Manual Event clips.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.
BlackVue Cloud
Me and My Car. Connected.
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue DR900S-1CH can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Native Parking Mode
Hardwiring cable included
DR900X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR900X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Built-in Tamper-Proofing
The DR770X Box is designed from the ground up to prevent tampering.
Main unit: cover with lock and key to prevent access to the microSD card and the cable connectors.
Cameras: covers with hex screw to prevent the unplugging of cables and lock the camera angle in the mount.
Triple protection
- Locks the dashcam’s angle via a hex screw to prevent rotation.
- Blocks the access to the microSD card slot.
- Protects against the unplugging of the power, video, and USB cables.
