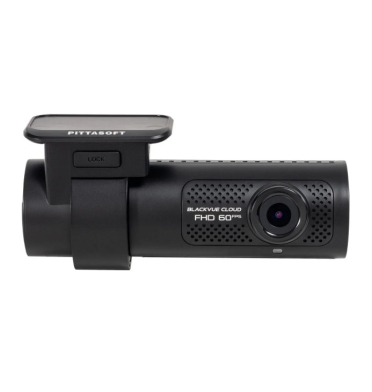

Blackvue | DR770X-1CH Plug & Play
- 64GB Micro SD card Included (Choose From 64GB to 256GB).
- Blackvue | DR770X 1-CH ( Plug & play).
- Built-in GPS
- Front Full HD 1080p @60fps .
- Viewing Angle : Front Diagonal 139°
- Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Built-in wifi.
- Best Night and Day Video Clarity and Built-in Cloud connectivity
- Full HD Cloud dashcam.
- Upgrade to Dual-Channel.
- Native Parking Mode.
- GPS, Wi-Fi and Optional LTE.
- Set up (easily) and forget.
- Seamless Pairing with the BlackVue App.
- Your videos are safe.
- Blackvue | DR770X 2-CH Recording Time PDF.
- Built-in Speaker, Impact Sensor and Motion Detection
- Sleek Interface.
- BlackVue App (iOS, Android) and Viewer windows/Mac/Web).
- Blackvue Cloud.
- High Frame Rate for Extra Fluidity.
- LTE Connectivity Module (Optional).
- Tamper-Proof Case (Optional).
- Intelligent Parking Mode.
(Supplied, inc VAT)
What's in the box
- Front Camera
- Quick start guide
- Cable clips (8EA)
- microSD card
- microSD card reader
- Spare mount sticky pads
- Hardwiring power cable
- Cigarette lighter power adapter
- Pry tool
Specifications
- Memory Support:
- microSD card up to 256GB
- Recording Modes:
- Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
- Parking Mode: YES (hardwiring cable included)
- Parking Mode Event Voice Notifications: YES
- Imaging Sensor:
- Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Viewing Angle:
- Diagonal 139°, Horizontal 116°, Vertical 61°
- Resolution Frame Rate:
- Full HD @60fps
* Frame rate may vary during Wi-Fi streaming
- Video Codec: H.264 (AVC)
- Image Quality and Bitrate Front/Rear:
- Highest (Extreme): 25 Mbps
- Highest: 12 Mbps
- High: 10 Mbps
- Normal: 8 Mbps
- Format Free: YES (Adaptive)
- Event File Overwrite Protection: YES (up to 50)
- SD Card Failure Alert: YES
- Scheduled Reboot: YES
- Video File Extension: MP4
- Wi-Fi: Built-in (802.11 b.g.n)
- Cloud Compatible: YES
- GPS: Built-in (Dual Band: GPS, GLONASS)
- Microphone: Built-in
- Speaker: Built-in
- Impact Sensor: 3-Axis Acceleration Sensor
- LED Indicators:
- Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
- Button:
- Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
- Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
- Operation Temperature: -20 °C − 80 °C (-4 °F − 176 °F)
- Storage Temperature: -20 °C − 80 °C (-4 °F − 176 °F)
- High Temp Cut Off: Approx. 80 °C (176 °F)
- Backup Battery: Built-in supercapacitor
- Input Power: DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
- Power Consumption Hour:
- Normal Mode (GPS On/1CH): Avg. 240mA / 12V
- Parking Mode (GPS Off/1CH): Avg. 190mA / 12V
* Actual power consumption may vary depending on use conditions and environment
- Others: Adaptive Format-Free File Management System
- Bluetooth: Built-in (V2.1+EDR/4.2)
- LTE: External (optional)
Full HD Cloud dashcam
Night Footage Never Looked This Good<.>
Sony STARVIS™ sensor with Full HD 1080p at up to 60 frames per second.
Record fluid videos at a wide 139° view angle.
The STARVIS image sensor ensures that your dashcam captures critical details even in low light.
Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
Upgrade to Dual-Channel
The single-channel DR770X-1CH has a port to connect a secondary camera, would you wish to upgrade in the future. With a secondary camera and corresponding video cable, turn your DR750X-1CH into DR770X-2CH, DR770X-2CH IR or DR770X-2CH TRUCK.
Wi-Fi, GPS and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.
(*) SIM card not included.
Native Parking Mode
Hardwiring cable included
DR900X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR900X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Seamless Pairing with the BlackVue App
Effortless setup. Secure. No password.
With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue DR900S-1CH can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: located in the front camera, it detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
Sleek Interface
Touch sensor
Tap the touch sensor to trigger Manual Event videos.
Format button
Hold to format the microSD card.
Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.
BlackVue Cloud
Me and My Car. Connected.
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
High Frame Rate for Extra Fluidity
The advantage of 60FPS video capture The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
Tamper-Proof Case (Optional)
The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.
Triple protection
Intelligent Parking Mode
Protect your car when you are away.
BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR970X Series supports two Parking Mode options:
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 54 hours on a 32GB microSD card front and rear at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
