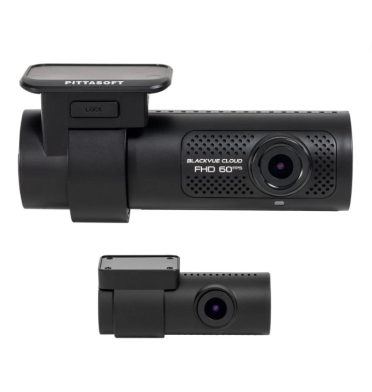

Blackvue | DR770X-2CH
- 64GB Micro SD card Included (Choose capacity From 64GB to 256GB).
- Blackvue | DR770X 2-CH (Both Hardwire and Plug & play).
- Built-in GPS
- Front Full HD 1080p @60fps , Rear Full HD 1080p @30fps Camera.
- Viewing Angle : Front Diagonal 139°, Rear Diagonal 116°
- Built-in wifi.
- Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Best Night and Day Video Clarity and Built-in Cloud connectivity
- Dual Full HD Cloud dashcam.
- Native Parking Mode.
- GPS, Wi-Fi and Optional LTE.
- Set up (easily) and forget.
- Seamless Pairing with the BlackVue App.
- Your videos are safe.
- Built-in Speaker, Impact Sensor and Motion Detection
- Sleek Interface.
- Blackvue | DR770X 2-CH Recording Time PDF.
- BlackVue App (iOS, Android) and Viewer windows/Mac/Web).
- Blackvue Cloud.
- High Frame Rate for Extra Fluidity.
- LTE Connectivity Module (Optional).
- Tamper-Proof Case (Optional).
- Intelligent Parking Mode.
- Please note when purchasing a 2/3 channel combination dashcam for automobiles. Certain vehicles have complex tailgate applications from split tailgates to complex grommet arrangements, before a purchase is executed please either call us on 01274 733633 or email on info@vehicletrackingtech.co.uk beforehand so we can ascertain the information to hand.
- Please before purchasing a 2channel/multichannel dashcam combination for vans. Certain vans that are carpeted cannot have the rear dashcams installed. If any further assistance is required, please call on 01274 733633 or email on info@vehicletrackingtech.co.uk
NOTE : Regarding the Supplied & Fitted Options
(Supplied, inc VAT)
What's in the box
- Front Camera
- Rear Camera
- Quick start guide
- Cable clips (8EA)
- microSD card
- microSD card reader
- Spare mount sticky pads
- Coaxial Cable (6m)
- Hardwiring power cable
- Cigarette lighter power adapter
- Pry tool
Specifications
- Viewing Angle :
- Front: Diagonal 139°, Horizontal 116°, Vertical 61°
- Rear: Diagonal 139°, Horizontal 116°, Vertical 61°
- Resolution Frame Rate :
- Front: Full HD (1920 x 1080) @ 60 fps
- Rear: Full HD (1920 x 1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
- Wi-Fi : Built-in (802.11 b.g.n)
- Cloud Compatible : YES
- GPS : Built-in (Dual Band : GPS, GLONASS)
- Rear Camera Connection : Coaxial cable
- Memory Support : microSD card up to 256GB
- Recording Modes :
- Parking Mode : YES (hardwiring cable included)
- Parking Mode Event Voice Notifications : YES
- Imaging Sensor :
- Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Video Codec : H.264 (AVC)
- Image Quality and Bitrate Front/Rear :
- Highest (Extreme): 25+10 Mbps
- Highest: 12+10 Mbps
- High: 10+8 Mbps
- Normal: 8+6 Mbps
- Format Free : YES (Adaptive)
- Event File Overwrite Protection : YES (up to 50)
- SD Card Failure Alert : YES
- Scheduled Reboot : YES
- Video File Extension : MP4
- Microphone : Built-in
- Speaker : Built-in
- Impact Sensor : 3-Axis Acceleration Sensor
- LED Indicators Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED
- Button :
- Format Button: Press and hold format button for 5 seconds, and after a beep, release the button.
Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.- Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
- Operation Temperature : -20 °C − 80 °C (-4 °F − 176 °F)
- Storage Temperature : -20 °C − 80 °C (-4 °F − 176 °F )
- High Temp Cut Off : Approx. 80 °C (176 °F)
- Backup Battery : Built-in supercapacitor
- Input Power : DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
- Power Consumption Hour :
- Normal Mode (GPS On/2CH): Avg. 380mA / 12V
- Parking Mode (GPS Off/2CH): Avg. 300mA / 12V
* Actual power consumption may vary depending on use conditions and environment.
- Others : Adaptive Format-Free File Management System
- Bluetooth Built-in (V2.1+EDR/4.2) : LTE External (optional)
Dual Full HD Cloud dashcam
Night Footage Never Looked This Good<./h3>
Dual STARVIS™ sensors in Full HD 1080p (front 60 / rear 30 frames per second).<>br
Fluid videos of the front and back of your car at a wide 139° view angle.
The back-illuminated STARVIS image sensors produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.
Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
Native Parking Mode
Hardwiring cable included
DR900X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR900X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Wi-Fi, GPS and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.
(*) SIM card not included.
Seamless Pairing with the BlackVue App
Effortless setup. Secure. No password.
With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue DR900S-1CH can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: located in the front camera, it detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
Sleek Interface
Touch sensor
Tap the touch sensor to trigger Manual Event videos.
Format button
Hold to format the microSD card.
Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.
BlackVue Cloud
Me and My Car. Connected.
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
High Frame Rate for Extra Fluidity
The advantage of 60FPS video capture The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
Tamper-Proof Case (Optional)
The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.
Triple protection
Intelligent Parking Mode
Protect your car when you are away.
BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR970X Series supports two Parking Mode options:
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 54 hours on a 32GB microSD card front and rear at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
While installing our dashcams is relatively straightforward, every vehicle is unique, and challenges may arise, especially with rear camera installations.
We recommend professional installation to ensure proper setup, particularly for vehicles with complex configurations like split tailgates or DAB interference. Our expert team is equipped to assess and address such challenges, offering tailored solutions for your specific vehicle requirements.
A dashcam, mounted discreetly on your vehicle's dashboard or windshield, serves as your silent witness on the road, capturing video footage of your journeys.
Installing one not only enhances safety but also provides invaluable accident documentation and peace of mind while driving. Moreover, our range includes additional cameras for internal, rear, and side views, suitable for various vehicle types, from cars to vans.
