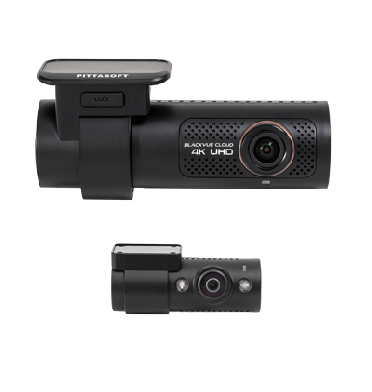

Blackvue | DR970X-2CH IR
- Memory card included(Can be upgraded upto 256GB).
- Blackvue | DR970X 2-CH (Both Hardwire and Plug & play).
- Built-in GPS
- Front 4K Ultra HD 1080p @30fps , Interior Full HD 1080p @30fps Camera.
- Viewing Angle : Front Diagonal 155°, Interior Diagonal 180°.
- Built-in wifi.
- 8-Megapixel CMOS Sensor
- The best protection for you and your vehicle.
- 4K/Full HD Cloud Taxi Dashcam.
- Seamless Pairing with the BlackVue App.
- Wi-Fi, GPS and Optional LTE.
- Native Parking Mode.
- Ultrawide Infrared Interior Camera.
- Set up (easily) and forget.
- Built-in Speaker, Impact Sensor and Motion Detection.
- Sleek Interface.
- Blackvue | DR970X 2-CH Recording Time PDF.
- BlackVue App (iOS, Android) and Viewer- (Windows/Mac/Web).
- BlackVue Cloud.
- LTE Connectivity Module (Optional).
- Your videos are safe.
- Tamper-Proof Case (Optional).
- Intelligent Parking Mode).
- Please note when purchasing a 2/3 channel combination dashcam for automobiles. Certain vehicles have complex tailgate applications from split tailgates to complex grommet arrangements, before a purchase is executed please either call us on 01274 733633 or email on info@vehicletrackingtech.co.uk beforehand so we can ascertain the information to hand.
- Please before purchasing a 2channel/multichannel dashcam combination for vans. Certain vans that are carpeted cannot have the rear dashcams installed. If any further assistance is required, please call on 01274 733633 or email on info@vehicletrackingtech.co.uk
NOTE : Regarding the Supplied & Fitted Options
(Supplied, inc VAT)
What's in the box
- Front Camera
- Interior IR Camera
- Quick start guide
- Cable clips (8EA)
- microSD card
- microSD card reader
- Spare mount sticky pads
- Coaxial Cable (6m)
- Hardwiring power cable
- Cigarette lighter power adapter
- Pry tool
Specifications
- Viewing Angle :
- Front: Diagonal 155°, Horizontal 130°, Vertical 70°
- Interior: Diagonal 180°, Horizonal 150°, Vertical 93°
- Resolution Frame Rate :
- Front: 4K (3840 x 2160) @ 30 fps
- Rear: Full HD (1920×1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
- Wi-Fi : Built-in (802.11n (2.4~2.4835 GHz))
- Cloud Compatible : YES
- GPS : Built-in (Dual Band : GPS, GLONASS)
- Rear Camera Connection : Coaxial cable
- Memory Support : microSD card up to 256GB
- Recording Modes :
- Normal recording, Event recording (when impact is detected in normal and parking mode)
- Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
- Imaging Sensor :
- Front: 8-Megapixel CMOS sensor
- Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Parking Mode : YES (hardwiring cable included)
- Parking Mode Event Voice Notifications : YES
- Video Codec : H.264 (AVC)
- Image Quality and Bitrate Front/Rear :
- Highest (Extreme): 25+10 Mbps
- Highest: 12+10 Mbps
- High: 10+8 Mbps
- Normal: 8+6 Mbps
- Format Free : YES (Adaptive)
- Event File Overwrite Protection : YES (up to 50)
- SD Card Failure Alert : YES
- Scheduled Reboot : YES
- Video File Extension : MP4
- Microphone : Built-in
- Speaker : Built-in
- Impact Sensor : 3-Axis Acceleration Sensor
- LED Indicators:
- Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
- Rear: Rear Security LED
- Button : Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
- Operation Temperature : -20℃ – 70℃ (-4°F – 158°F)
- Storage Temperature : -20 °C − 70 °C (-4 °F − 158 °F)
- High Temp Cut Off : Approx. 70 °C (167 °F)
- Backup Battery : Built-in supercapacitor
- Input Power : DC 12V-24V (3 pole DC Plug (Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
- Power Consumption Hour :
- Normal Mode (GPS On/Cloud On) : Avg. 530mA/12V
- Normal Mode (GPS On/Cloud Off) : Avg. 470mA/12V
- Parking Mode (GPS Off/Cloud On) : Avg. 400mA/12V
- Parking Mode (GPS Off/Cloud Off) : Avg. 340mA/12V
- * Actual power consumption may vary depending on use conditions and environment.
* Model DR970X-2CH LTE should be used only in circuits that satisfy Limited Power Source.
(Maximum power consumption is to be less than 100 VA or 8 A).
- Others : Built-in 4G LTE module compatible with Nano-SIM. Frequency Bands: B1,B3,B7,B20
- Bliuetooth : Built-in (V2.1+EDR/4.2)
- LTE : External (Optional)
4K/Full HD Cloud Taxi Dashcam
4K Ultra HD (front) and Full HD (interior) cameras.
Wide 155-degree view angle front and ultrawide 180-degree
interior-facing camera.
The Interior infrared (IR) camera truly sees in the dark, even pitch-black lighting conditions, thanks to integrated infrared LEDs that activate automatically based on the ambient light.
Seamless Pairing with the BlackVue App
Effortless setup. Secure. No password.
With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
Wi-Fi, GPS and Optional LTE
Wi-Fi: download videos to your phone at blazing speed. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience and use your BlackVue as a Wi-Fi hotspot for up to five devices.
(*) SIM card not included.
Native Parking Mode
Hardwiring cable included
DR900X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR900X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Ultrawide Infrared Interior Camera
The Infrared Camera secures the interior of your vehicle. The inconspicuous infrared LEDs automatically activate based on the ambient luminosity.
The camera’s spectacular clarity even in pitch black lighting conditions will procure peace of mind to taxi and rideshare drivers.
With its ultrawide 180-degree view angle, the camera can capture both the driver-side and passenger-side windows at the same time in most vehicles.
Using the BlackVue App or Viewer, you can further customize the way it operates.
- 180° Image Rotation to accommodate your setup: install the camera the way you like. If the image comes out upside down, just activate this feature and it will fix the image orientation.
- Security LED ON/OFF (for stealth in Parking Mode).
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue DR900S-1CH can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
Sleek Interface
Touch sensor
Tap the touch sensor to trigger Manual Event videos.
Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.
BlackVue Cloud
Me and My Car. Connected.
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Tamper-Proof Case (Optional)
The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.
Triple protection
Intelligent Parking Mode
Protect your car when you are away.
BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR970X Series supports two Parking Mode options:
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 54 hours on a 32GB microSD card front and rear at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
While installing our dashcams is relatively straightforward, every vehicle is unique, and challenges may arise, especially with rear camera installations.
We recommend professional installation to ensure proper setup, particularly for vehicles with complex configurations like split tailgates or DAB interference. Our expert team is equipped to assess and address such challenges, offering tailored solutions for your specific vehicle requirements.
A dashcam, mounted discreetly on your vehicle's dashboard or windshield, serves as your silent witness on the road, capturing video footage of your journeys.
Installing one not only enhances safety but also provides invaluable accident documentation and peace of mind while driving. Moreover, our range includes additional cameras for internal, rear, and side views, suitable for various vehicle types, from cars to vans.
